Spark Plug 101: Everything You Need to Know

 🛑 All the information you need about spark plugs :-

The spark plug has a huge impact on the performance of your car, which is one of those small but powerful parts Spark plugs are essential to ensure that your engine runs smoothly, efficiently and deliverable reliable despite its small size. We’ll go over everything you need to know about spark plugs in this blog post, including their definition, use, importance, and when to replace them.

🛑 What is a spark plug :-

•  A spark plug is a small insert into the cylinder head of your engine. Its primary function is to illuminate the engine air-fuel connection in the combustion chamber. The explosion that powers your car comes from this ignition. Your engine has a spark plug for each cylinder, so a four-cylinder engine has four spark plugs, a six-cylinder engine has six, etc.

• Spark plugs are most commonly made of ceramic and metal. As the metal parts conduct electricity to create a spark, the ceramic insulation helps isolate the surges. Although modern spark plugs are built to last, they eventually wear out, hence the need for replacement and maintenance.

🛑 How do spark plugs work? :-

The working of a spark plug may seem simple, but it’s actually a precise and complex process. Here are the detailed explanations:

1. Voltage generation:

The ignition coil generates high voltage, 40,000 volts or more, and sends it to the spark plug.

2. Spark generation:

The voltage passing through the spark plug produces a spark between the central electrode and geo electrode.

3. Air-fuel ignition:

A compressed mixture of air and fuel of the combustion chamber is ignited by this spark.

4. Power Stroke:

The piston is forced down by a subsequent explosion, which turns the crankshaft and provides the force needed to move your car.

In a running engine, this cycle occurs hundreds of times per minute, leaving the spark plug a constant bright spot.

🛑 What is the importance of a spark plug? :-

 The importance of a spark plug can’t be overstated. They are important for the following main reasons:

1) Performance of the engine:

The spark plug ensures constant ignition required for proper and smooth engine operation.

2) Fuel efficiency:

If the spark plug is damaged or failure can waste fuel and reduce the miles per gallon of your vehicle.

3) Reduced emissions:

When the spark plug is working properly, your engine burns fuel more efficiently, reducing emissions.

4) Longevity of the engine:

Over time, combustion problems due to worn spark plugs can lead to poor performance, serious wear and tear and potential damage to other parts.

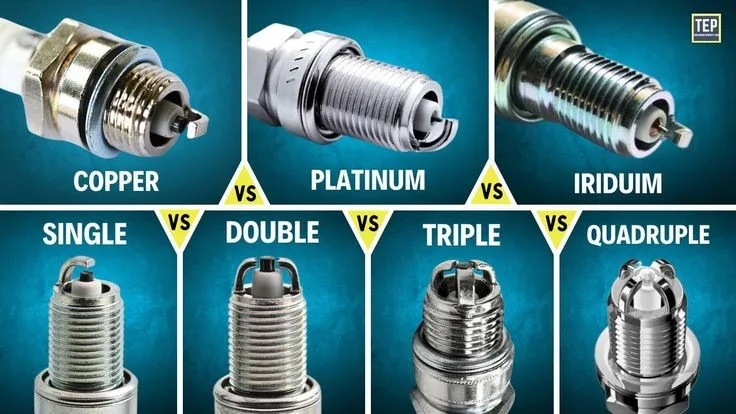

🛑 Different types of spark plugs :-

Not all spark plugs are created equal. Depending on your vehicle and driving style, you may need a specific vehicle. Here are the main types of spark plugs.

1. Copper Spark Plug :- .

• Copper spark plugs are the basic type and the copper core consists of nickel-alloy electrodes.

• They are expensive but have a short shelf life compared to other varieties.

• Ideal for older cars and engines that require low power output.

2). Platinum Alloys :-

• These have platinum wheels welded to the central electrode.

•  Platinum is harder than nickel, which means these spark plugs last longer.

• Ideal for modern engines with high performance needs.

3). Double Platinum Spark Plugs :-

• Featuring platinum in the middle and bottom electrodes also makes it very durable.

• Designed for engines with waste spark ignition systems.

4) Iridium Spark Plug :-

• Iridium is harder and stronger than platinum.

• These spark plugs last longer and improve performance, especially for high performance or turbocharged engines.

5). Silver Spark Plug :-

• Rarely used in modern cars, silver spark plugs are known for being very hot.

• Found primarily on high performance old European cars and motorcycles.

🛑 Symptoms Your spark plugs need replacing:-

Spark plugs wear out over time, but how do you know when to replace them? Here are the tell-tale signs.

1). Engine malfunctions: If you find your engine stuttering or running poorly, a worn spark plug could be the culprit.

2). Poor fuel efficiency: A sudden drop in fuel efficiency could indicate that your spark plugs are not fueling properly.

3). Starting Problems: If your engine struggles to start, especially in the winter, it could be due to a faulty spark plug.

4) Rough idle: A shaky or uneven engine idle is often associated with spark plug problems.

5). Lack of speed: If your car isn’t as fast as it used to be, a faulty spark plug could be to blame.

6). Check the engine light: A bad start due to a bad spark plug can trigger your car’s check engine light.

🛑 How often should you change spark plugs?

The life of a spark plug depends on its type and how you drive. Combination of materials:

• Copper plug: 20,000 to 30,000 miles.

• Platinum plug: 60,000 miles.

• Iridium plugs: 100,000 miles or more

Always refer to your vehicle’s owner’s manual for the manufacturer’s recommendations. Routine inspections during routine maintenance can also catch problems early.

🛑 How to change spark plug :-

If you’re a handyman, replacing a spark plug can be an easy DIY job. Here’s how to do it.

1). Assemble tools:

You’ll need a spark plug socket, a ratchet wrench, and possibly a torque wrench. A gauge is also useful for checking the gap between the spark plugs.

2). Find the spark plugs:

Check your owner’s manual to find the spark plugs for your engine.

3). Remove the old plug:

 Carefully disconnect the spark plug wire or ignition coil, then remove the old plug with a socket.

4) Check spacing:

Use a spacing gauge to ensure that a new spark plug is installed in the correct position specified by your vehicle manufacturer.

5). Install a new plug:

To avoid clogging the wires, wire a new plug by hand, then tighten with a wrench to the specified torque.

6). Reconnect the cables:

Reconnect the spark plug cables or ignition coils, making sure they are tight.

🛑 Advice for Spark Plug Repair :-

To maintain the smooth operation of your engine and get the most out of your spark plugs, follow these suggestions.

1. Use the correct one:

Always select the spark plugs recommended for the make and model of your car.

2. Regular inspection:

Inspect your spark plugs during routine maintenance to prevent premature wear or damage.

3. Check the gap:

Be sure to adjust the spark plug gap properly, as improper gap can lead to poor performance.

4) Replace between sets:

 Replace all spark plugs at once to ensure continuous operation of all cylinders.

5. Keep it clean:

Dirt and grime near the spark plug can make it difficult to store. Before removing old plugs, clean the area with compressed air.

🛑 Conclusion :-

even small spark plugs have a significant impact on the performance of your vehicle. Understanding how your engine works, identifying known types of damage, knowing when to repair can save future time, money and trouble Fuel efficiency, reducing emissions from gasoline and gas a combined with burning in comes on Whether you want to do it yourself or hire a professional, Maintaining your car's spark plugs is a proven way to go about it works well for many years.

🛑 Other Topics :-

1). Turbocharger 101: Everything You Need to Know About Boosting Engine Performance

2). Brake Pads 101: All the Information You Need to Understand This Crucial Component :-

3). Engine Full Information: Types, Components, and How They Work :-

4). Tires :-

5). catalytic converter / what is a catalytic converter :-

🛑 People Also Ask :-

1) How to tell if spark plugs need replacing?

Here are seven signs that your car’s spark plugs need replacing.

1). It’s hard to start your car.

2). Your engine is Misfiring.

3). Your fuel consumption is poor.

4) Your engine idles rough.

5). Your car is not going fast enough.

6). Your engine is Loud.

7). Your “Check Engine” light will come on.

2) How to check spark plug?

To determine if the spark plug is damaged,

Step 1: unplug the spark plug.

Step 2: Use the spark plug socket to remove the spark plug.

 Step 3: Inspect the spark plug for burned electrodes, porcelain, or very hard materials.

Step 4: Check the spark plug gap and make any necessary adjustments.

3) How many spark plugs are in a car? :-

How many car spark plugs are needed? The only cars that need a spark plug are internal combustion engines, which are fitted with one per cylinder. An eight-cylinder internal combustion engine has eight spark plugs, while a four-cylinder engine has four.

4) Can you clean spark plugs?

While it is technically possible to clean a spark plug, it is generally impractical. For many reasons, we do not recommend it.

5) Can I drive with bad spark plugs?

Ideally, you should replace them immediately. But if they don't break down, you can live a little longer. The fuel in the combustion chamber does not burn due to the weak flame. This makes it more difficult to start the engine and reduces power and fuel efficiency.
